Products Description

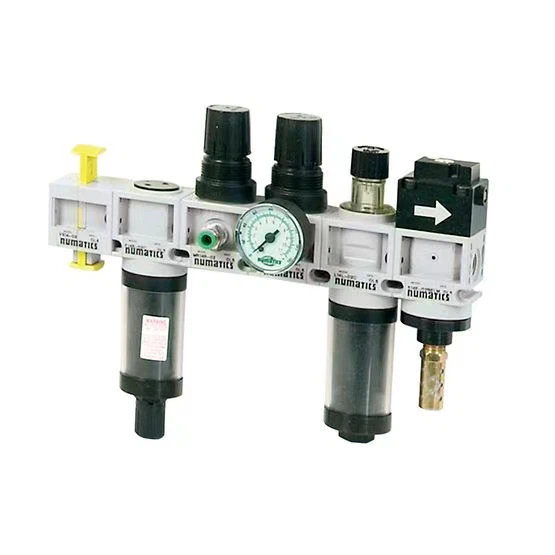

The Numatics Series 14 FlexiBlok® line is a modular, easy-to-assemble system of pneumatic filters, regulators, and lubricators (FRLs) available in 1/8-inch and 1/4-inch port sizes. These products combine high flow rates with reliable performance and superior durability. Their robust constructions are ideal for applications in the automotive and tire, chemical, food and beverage, medical and life science, and oil and gas industries. Most components can be modified with readily available options and accessories such as metal bowls and easy-to-operate drains.

Features

Simple to assemble with two button head screws and an O-ring seal - reducing leakage and lowering installation cost
Integrated mounting holes eliminate mounting brackets and allow components to attach directly as standalone units
High flow design with minimal pressure drop ensure air preparation products will not constrain pneumatic system operations
Wide range of filter elements (particulate, coalescing, and adsorbing) permits maximum filtration flexibility
Combination coalescing filter/regulator with 3-micron pre-filter saves space and capitol expense

Competitive Advantages in the Industry

In the competitive industrial components market, the Numatics Series 14 establishes its leadership through the following outstanding advantages:

1. Exceptional Filtration Efficiency & Long-lasting Protection

· Advantage: Utilizes a two-stage filtration process with centrifugal separation and a depth filter element. Its coalescing filter effectively removes sub-micron oil aerosols and contaminants, providing a protection level far exceeding industry standards for sensitive pneumatic components and precision equipment, significantly reducing failure rates.

2. Unmatched Pressure Stability

· Advantage: Features a high-sensitivity balanced poppet and large diaphragm design. This ensures remarkably stable outlet pressure despite inlet pressure fluctuations or sudden downstream flow changes. This translates to highly consistent speed and force in pneumatic actuators, directly enhancing precision and repeatability in manufacturing and assembly, ideal for high-speed automation.

3. Precise and Controllable Micro-fog Lubrication

· Advantage: Employs the Venturi effect with an adjustable oil feed mechanism to atomize lubricant into an extremely fine, uniform mist, allowing precise control of the air-to-oil mixture. This ensures lubricant reaches the point of need without wall-wash, maximizing lubrication effectiveness while minimizing oil consumption for cost efficiency and environmental benefit.

4. Robust Industrial-Grade Construction

· Advantage: All-metal (die-cast aluminum) body combined with high-strength, impact-resistant polycarbonate bowls offers superior mechanical strength and chemical resistance. A wide operating temperature range enables reliable performance in harsh environments, from cold factory floors to areas near high-temperature machinery.

5. Ultimate Modularity & Maintenance Ease

· Advantage: True modular design allows filters, regulators, and lubricators to be replaced or combined independently without disassembling the entire unit. Equipped with large-view bowls and automatic or manual drain valves, maintenance status is clear at a glance, and servicing is quick and simple, drastically reducing downtime.

Suitable Application Conditions

The Series 14 FRL is the ideal choice for demanding application scenarios:

1. High-Precision Automation & Robotic Integration

· Scenarios: Automotive body-in-white welding lines, precision dispensing with 6-axis robots, high-speed placement in electronics manufacturing.

· Requirements: Extremely high demand for air cleanliness (to prevent valve sticking) and pressure stability (to ensure consistent motion).

2. Continuous-Process Industries

· Scenarios: Food & beverage filling and sealing lines, packaging machinery in pharmaceuticals, pneumatic control valves in chemical processing.

· Requirements: 24/7 uninterrupted operation makes reliability critical. May involve food safety (requiring food-grade lubricant) or corrosion resistance needs.

3. Heavy Machinery & Machine Tools

· Scenarios: CNC machine tool changers, clutch controls for stamping presses, pneumatic devices on foundry equipment.

· Requirements: Demanding environments with high dust and vibration necessitate FRLs with high contamination resistance and mechanical robustness, capable of handling high air flows.

4. Mission-Critical Equipment Sensitive to Air Quality

· Scenarios: Laser cutter air path protection, pretreatment for spray equipment, air bearing platforms for precision metrology.

· Requirements: Trace amounts of oil, water, or dirt in the air can cause product defects or equipment damage, requiring high-grade fine filtration (e.g., 0.3 or 0.01 micron).

5. Compact Equipment with Space Constraints

· Scenarios: Small assembly workstations, inside semiconductor fabrication tools, medical analyzers.

· Requirements: Modular design allows flexible configuration (e.g., using only Filter-Regulator FR), saving valuable installation space.
