Description
Send Inquiry

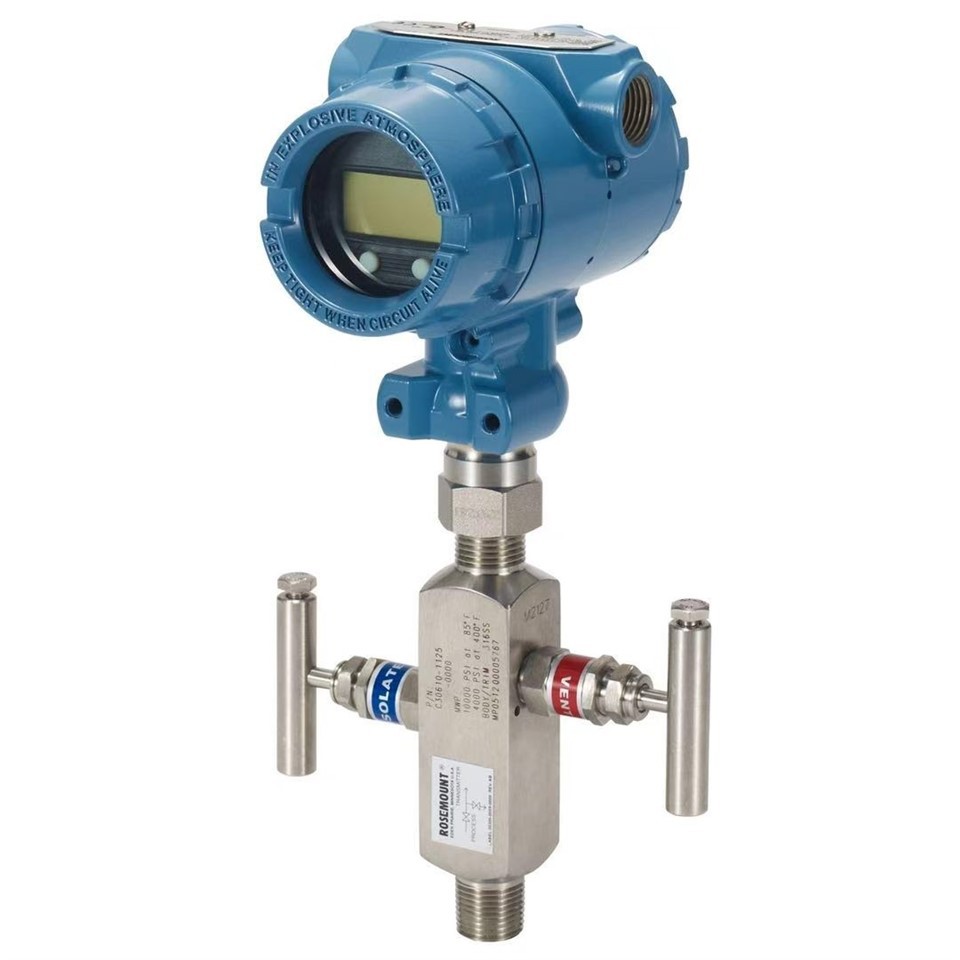

• Supported protocols include 4–20 mA HART and 1–5 Vdc HART Low Power
• Fully configurable LCD display shows process variables, span percentage, and diagnostic messages
• Lightweight, compact, and easy to install
• Available with stainless steel (SST) or Alloy C-276 wetted diaphragm materials
Key Features and Benefits
• High Accuracy + High Stability
◦ Reference Accuracy: ±0.065% to ±0.10% FS
◦ Turndown ratio: 50:1, wide measurement range coverage, reducing spare parts inventory
◦ Long-term stability: ±0.125% URL over 5 years, extended calibration intervals
◦ Built-in intelligent temperature compensation, resistant to temperature drift and vibration
• Flexible Communication and Configuration
◦ Standard: 4–20 mA + HART (two-wire)
◦ Optional: 1–5 Vdc HART Low Power (for battery-powered applications)
◦ Features an LCD local display + LOI button for tool-free on-site configuration, zeroing, and diagnostics
◦ Compatible with the THUM wireless adapter for wireless network connectivity
• Rugged and reliable, with strong adaptability to harsh operating conditions
◦ Wetted materials: 316L stainless steel (standard)/Hastelloy C-276 (optional), corrosion-resistant and NACE-compliant
◦ Pressure range: -14.7–4000 psi (-1–276 bar), covering vacuum to high pressure
◦ Temperature: -40–85°C; IP67 protection; complete explosion-proof certifications (ATEX/IECEx/UL/China ATEX)
◦ Cast aluminum housing, compact and lightweight design, simple and cost-effective installation
Comprehensive process connections (suitable for almost all industrial applications)
• Standard connection: 1/2–14 NPT female thread (most common)
• Optional Extensions
◦ Threads: M20×1.5, G1/2
◦ Flanges: ANSI 150#/300#, DN15/DN25 (RF/FF)
◦ Sanitary: Clamp, Quick-Connect, Sterile Flange (Food/Pharmaceutical)
◦ Manifold: 306 stainless steel integrated three-valve manifold (factory pre-assembled, leak-free)
◦ Remote Sealing: Capillary tube + diaphragm seal (high-temperature/viscous/highly corrosive)
• Wetted Parts/Filling: Silicone oil (standard), inert fluid (oxygen/special media)
• Authorization: Officially certified Emerson Rosemount distributor, providing:
◦ Original factory certificate of conformity + traceability certificate + explosion-proof certificate
◦ Brand-new, genuine products; no refurbished or counterfeit items
◦ Official warranty: 12 months
◦ Technical support, product selection, installation and commissioning, HART handheld communicator services
• Applicable Industries: Petrochemicals, Water Treatment, Power Generation, Metallurgy, Pharmaceuticals, Food Processing, HVAC, and more.
Summary
2088G = Accurate (±0.065%), Stable (5-year stability), Comprehensive (connectivity/certification/communication), Cost-effective (affordable pricing, low maintenance). As an authorized distributor, we guarantee genuine products and after-sales support.
